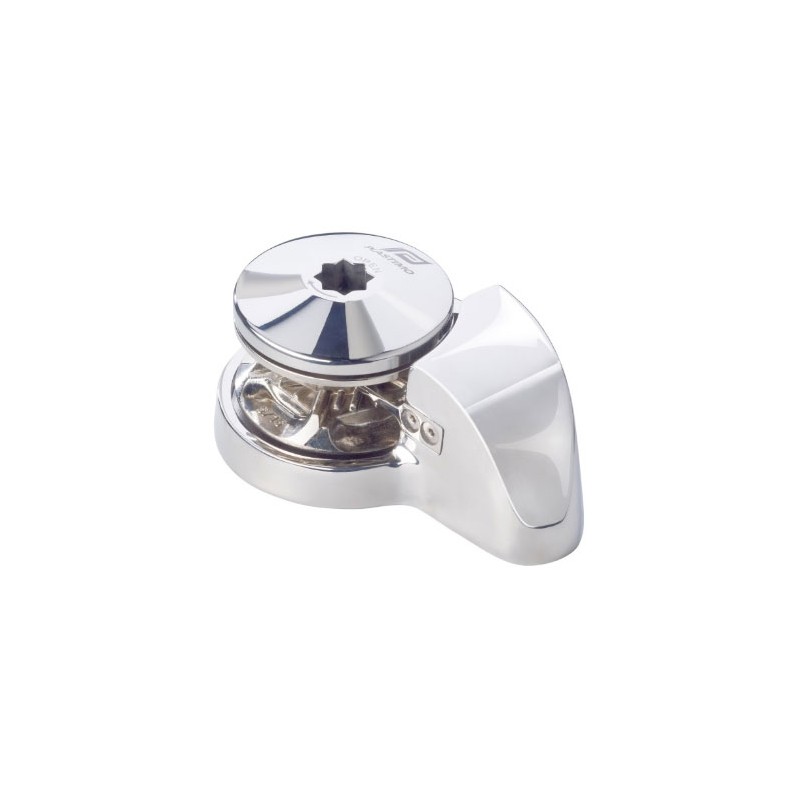

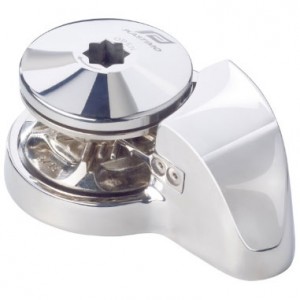

Profile 500W PLASTIMO 500 windlass

Vertical windlass all stainless steel 316L 500W for boats from 6 to 10 m.

Technical features:

• Material: Stainless Steel AISI 316L
• Engine power: 500W
• Voltage: 12V
• Consumption: 38A
• Pull-out force: 550kg
• Lifting useful load: 90kg
• Maximum lifting load: 280kg
• Lift speed: 25 m/min
• Weight: 8.5 kg

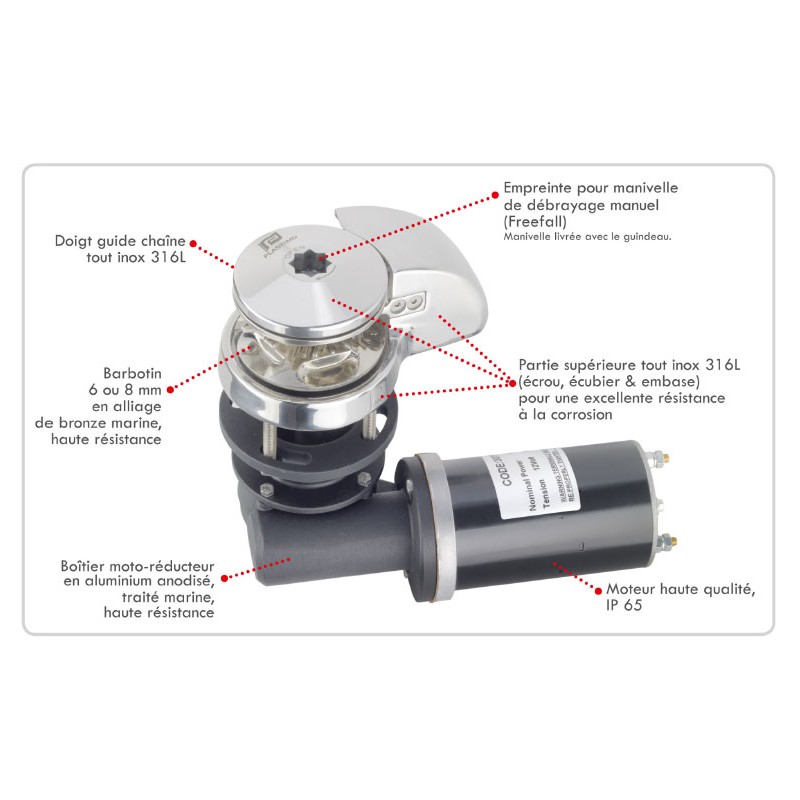

The windlass is equipped with:

• Gipsy for chain 6 or 8mm ISO 4565 & DIN 766 and rope 3 strands Ø 10-12 mm
• a relay ascent/descent of series box
• a series for chain counter sensor
