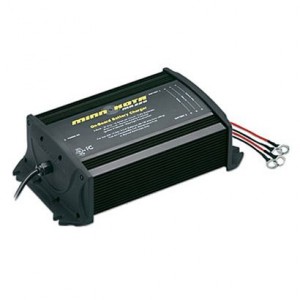

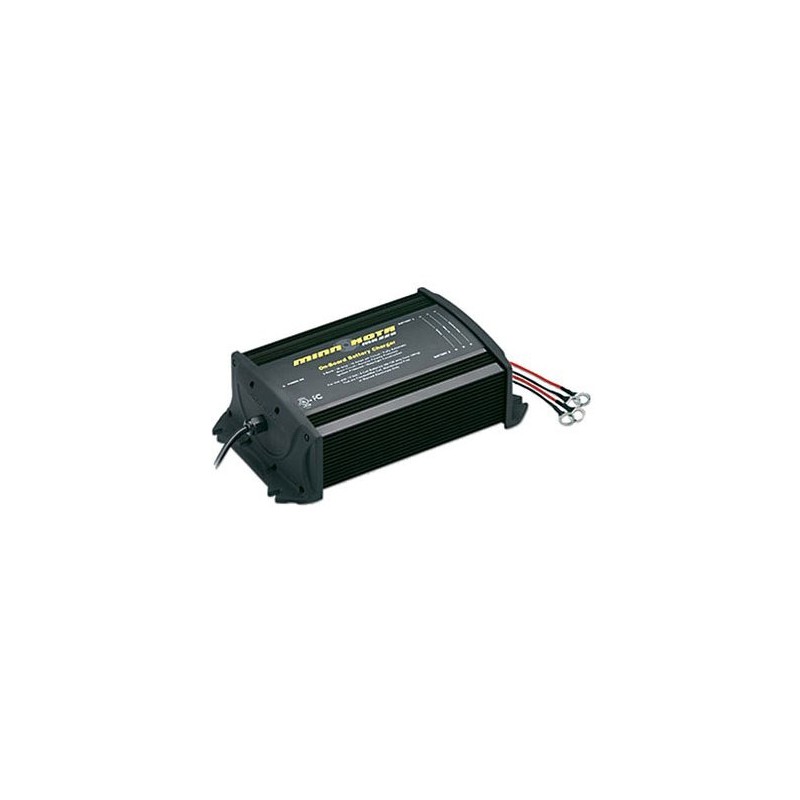

2x10A MINN KOTA 220-E 12V battery charger

Strong points:

• Automatic charger
• IPx7 waterproofing
• Surge protection
• Overload protection
• Short-circuit protection
• Protection against polarity inversion.
• 2 outputs 10 amp 12VDC.
• Power supply 220 VAC.

Main features:

• Light, practical, mobile, efficient, secure
• Minn-Kota Chargers set automatically the load profile for each lead battery to recharge it and maintain it in perfect conditions of safety.
• They can stay connected to the sector continuously, automatic monitoring of load according to the level reached by the battery.
• Step 1: provide an amperage higher until you reach 75% of load (14.4 VDC).
• Step 2: reduced the voltage at 13.5 VDC in order to limit the formation of gas.
• Step 3: maintains the voltage between 13.2 and 13.5 VDC and amperage in 0.1 and 0.3.

Technical features:

• Number of outputs: 2
• Output current: 2 x 10 A
• Dimensions (mm): 343 x 190 x h 102
• Input voltage: 220V dc
• Output voltage: 12 V DC
• Charge time: 4-6 hours
• Gross weight: 9.25 kg
