Battery charger marine 12V 16A CRISTEC range YPOWER Maximize

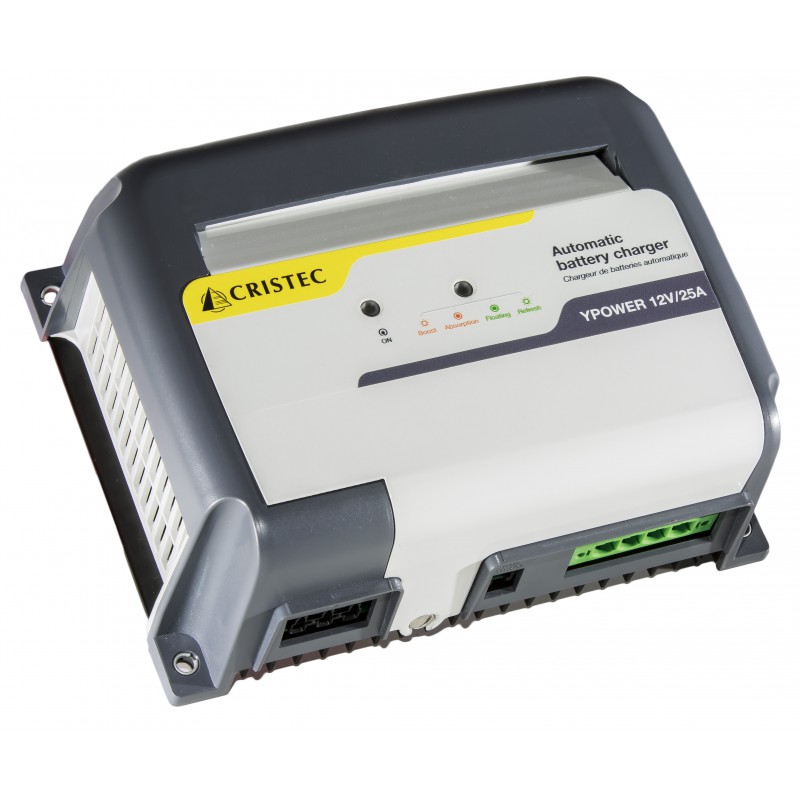

Battery charger marine 12V 25A CRISTEC range YPOWER

Manufacturing French

More details

CRIYPO12-25ST

423,71 €

-25%

564,95 €

Reduced price!

Keep your batteries thanks to an optimal recharge custom.

Established in 1983, CRISTEC - Creation, Innovation scientific and technical - specializes in energy conversion. Through a range of products distributed in more than 50 countries, CRISTEC has developed expertise of international scope. Today, after more than 110,000 HF Chargers sold worldwide, CRISTEC is proud to make you benefit from the advantages of its fifth-generation Chargers HF: the new YPOWER range.

Main features:

  • Plug-in connectors : Simple, reliable and fast editing.
    Easily placeable charger even in tight areas.
    Cons-connection beams AC and DC provided.
  • Quiet operation : An absence of fan for completely silent operation allowing installation in living rooms.
  • Tempearture performance: Full load up to + 60 ° without loss.
    Engine shim possible installation.
  • International compatibility: Automatic detection of the power supply 90-265 VAC / 47-65 Hz.
    Design and manufacturing standards UL-1236 Navy and CSA 22.2 - 107.2 and prescriptions ABYC A-31.
    Generator operation.
  • Smart box: Modern, robust and compact.
    State control of load by 2 witnesses of LED type two-tone.
    Fixing wall quick and easy 4 points.
  • Curve load 5 States:
    Boost : quick charging of batteries to 80%
    Absorption : Slow refund up to 100%
    Floating : load retention
    Automatic Refresh : To prevent sulfation and revitalize the batteries, internal selectable by switch.
    Reboost : New round of automatic boost if consumption and condition of the batteries the require.
    Also available DC power mode.
    Internal mode UI inhibiting the boost by switch.
  • Charging custom: Type of batteries by switch setting: Gel, AGM, free electrolyte, lead calcium, Lithium, etc.
  • 3 batteries at the same time: Automatic load on 1,2 or 3 output current adjustment and repair. A release dedicated to the starter battery + Bat E.
    Built-in separator to MOS transistors.
    Protection of the charger during the engine start.
  • Editing at the same time: Up to 4 Chargers mounted in parallel to multiply the load.



Technical features:

  • Model: 12V / 25A
  • Recommended battery capacity: 200-300 Ah
ENTRY:
  • Voltage: 90 to 265 VAC single-phase automatic
  • Frequency: 47 to 65 Hz automatic
  • Consumption intensity 2320 / 115 VAC: 1.7 / 3.4 A
  • Power generator recommended: 435W
  • Power factor: 1
  • Performance: 90% typical
  • Removable input fuse: T6.3A / 250V Schurter MST 250


OUTPUT:

  • Number of outputs: 3 positive poles separated including one dedicated to the engine battery: + BAT E, + 1 BAT and + bat 2 (built-in Dispatcher).
    1 negative pole - BAT
    Each output can be used alone and debit the total current
  • Total nominal current (+/-7%) / nominal power: 25A / 356W
  • Boost voltage: 14.4 VDC default for type sealed lead batteries
  • Floating voltage: 13.8 VDC default for type sealed lead batteries
  • Automotive fuse mounted in series dan pole - BAT: 1x30A/32V



ENVIRONMENT:

  • Cooling: Natural Dissipation
  • Noise level: 0
  • (230 VAC) operating temperature: from-20 ° to + 60 °, linear derating above 60 ° C. More than 65 ° C, auto shut off of the charger without breakage - auto restart
  • Storage temperature:-20 ° to + 70 ° C
  • Relative humidity: up to 70% (95% without condensation)



BOX:

  • Materials: made up of 3 parts:
    Anodized aluminum heatsink chassis
    Thermoplastic cover
    Aluminium clasp
  • Dimensions (L x H x D): 236 x 180 x 96 mm
  • Weight: 2.1 kg
  • Fixing distance: 219 x 155 mm
  • Screws (wall): 4 screws M5 round head
  • Index of protection: IP22
  • Card protection: tropicalization by varnish hdrofuge (marine environment)


PROTECTIONS:

  • Transient surge of entry by varistor (out of warranty)
  • Against inversion of polarity output by fuse (s) (car type replaceable (s))
  • Against short circuits and overloads output
  • Against the abnormal overheating by cutting charger (auto restart)
