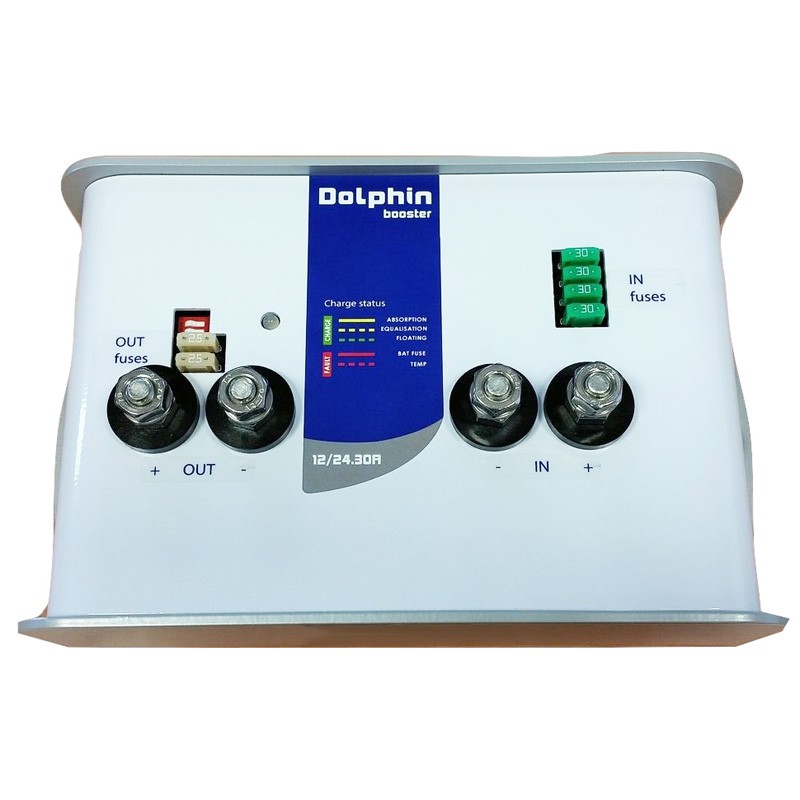

Battery charger marine 24V 30A DOLPHIN Booster

This new boost converter can recharge a battery Park using a source current continuous while enjoying a smart charge 3-State curve.

Thanks to intelligent regulation of the load to 3 States so that the possibility to select until 4 programs of various loads (gel, AGM, lead open, LifeSo4) DOLPHIN BOOSTER is an ideal product for many applications.

Input characteristics:

• Tolerance voltage: 20V to 30V
• Consumption max: 30A
• Performance: 90% typ

Characteristics of output:

• Number of output: 1
• Isolation input / output: no isolation, common 0V
• Battery voltage: 24V
• Battery capacity: 50Ah to 200Ah
• Charge voltage: variable of 26V to 30V +/-1%
• Load current max: 30A +/-5%
• Charge cycles: 4 selections (dipswitch selection)
• Load profiles: Type IUUo
• Free electrolyte: 26.4V - 28.8V
• Gel: 27.2V - 28.4V
• AGM: 27.2V - 29.0V
• LiFeSo4: 28.4V
• Ripple: < 1%

Protections:

• Under and overvoltage of entry: electronic (restart automatic)
• Under and overvoltage output: electronic (restart automatic)
• Short-circuit output: electronics (restart automatic)
• Excessive temperature: electronics (restart automatic)
• Polarity Reversal: fuses
• Input fuse: 4 x F15A
• Output fuses: 2 x F25A
• Climate: Tropical eCard
