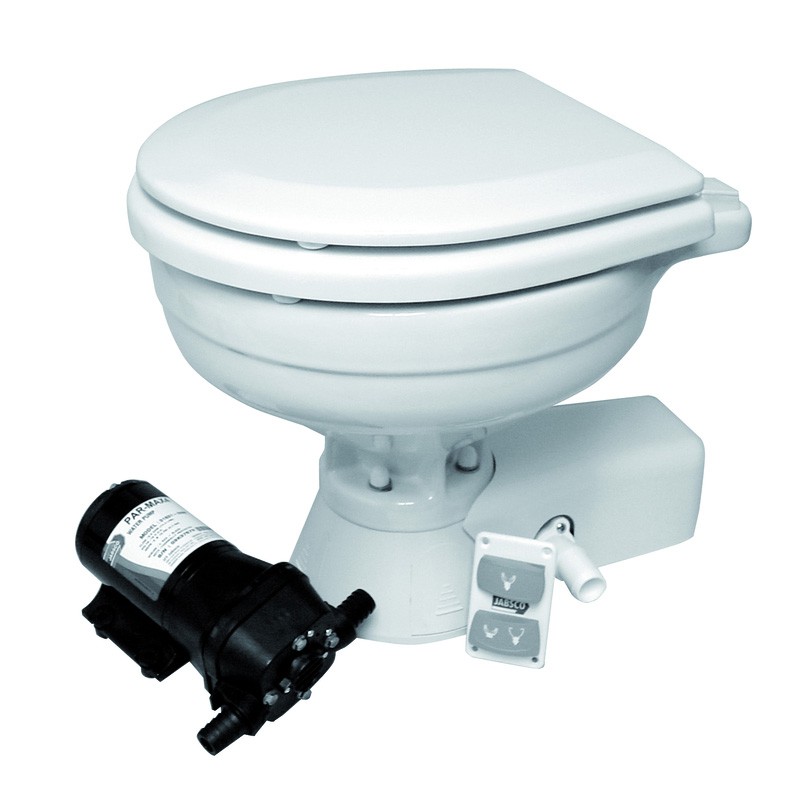

'Quiet Flush' standard model 37045 JABSCO electric toilet

W.C. electric "Quiet Flush" JABSCO, standard Bowl

F UNCTIONALITY:

-Cycle of quiet hunting - as household toilet.
-Actuator of hunting one-button - with two functions of level control switch.
-Can be connected to any water system ensuring a flow of 13.5 l/min.
-Valve with a vacuum breaker anti-siphon water supply in order to avoid any contamination of the drinking water reservoir.
-Available in compact size or comfortable standard white porcelain bowl.
-Bezel and enameled lid.
-Waste macerator and the Bowl drain pump capacity.

INSTALLATION:
The toilet can be connected to any system of water pressurized with a minimum of 13.5 l/min flow. It can be a system to freshwater, including the system of drinking water in the boat, or a washing system using either fresh water or salt water.

Interview:
The W.C. to silent hunting of Jabsco requires no maintenance other than occasional cleaning to maintain a State of health. Clean the toilet with no abrasive cleaners soft, without aromatic powerful. Cleaners with a high concentration of aromatics, such as cleaning scent of pine and concentrated cleaners, strongly flavored, can cause swelling of the pump and contribute to the premature leak of the joint.

SPECIFICATION:
NOZZLES:
-Arrival 19 mm fluted tip - tip fluted 25 mm engine output and

SWITCH: In line with the regulation U.S.C.G 183.410 and ISO 8846 MARINE for the protection against the risk of explosion.

WATER consumption: 1 to 2 litres per cycle of hunting

: Height 35.0 cm, width 41.9 cm.
