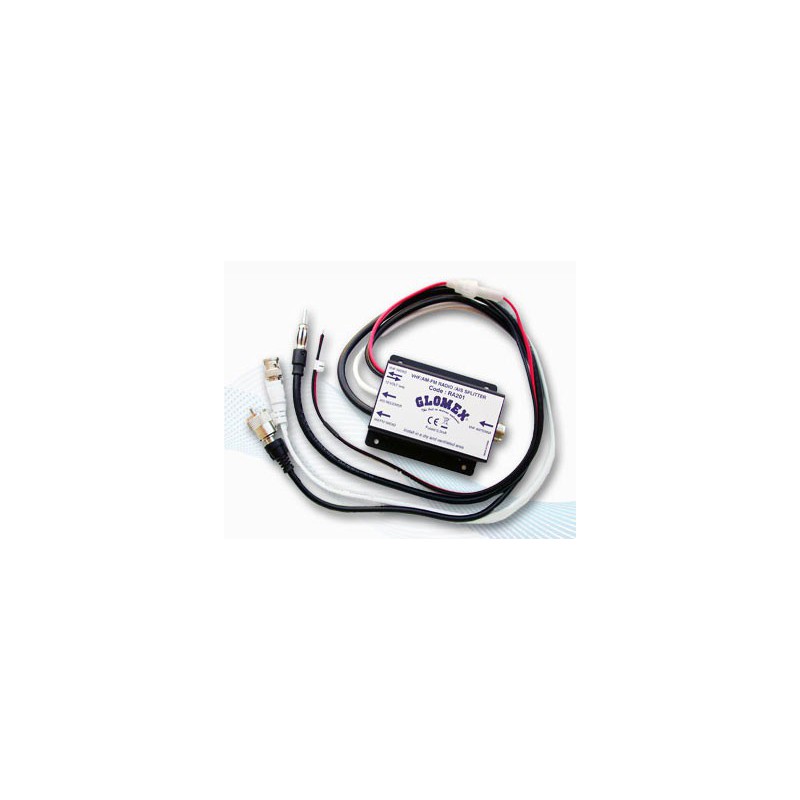

Duplexer VHF / AIS receiver / Radio GLOMEX RA201

Duplexer RA201 amplified allowing simultaneous connection, without loss of reception, a VHF transceiver, an AIS receiver and an AM - FM receiver on the same antenna VHF!
Features:

-Impedance: 50 ohms
-Radio reception range: 100 KHz to 200 MHz (GB
-Po
-OC
(- FM included)
-Emission VHF reception range: 100 MHz to 200 MHz

-AIS reception range: 100 MHz to 200 MHz

-Preamplifier integrated: 15 db shared on entries (compensation for losses)
-Power VHF range: from 0.2W min. 100W max

-Current max.: 40 my to 13V

-Power supply: 10-16V
Connections:

-for the VHF antenna: female PL259

-for the VHF connection: male PL259
-for the AIS connection: BNC male (PL259 male in option)
-for the radio link: taken FM motorola male
ATTENTION: This device is not for AIS transponders.
