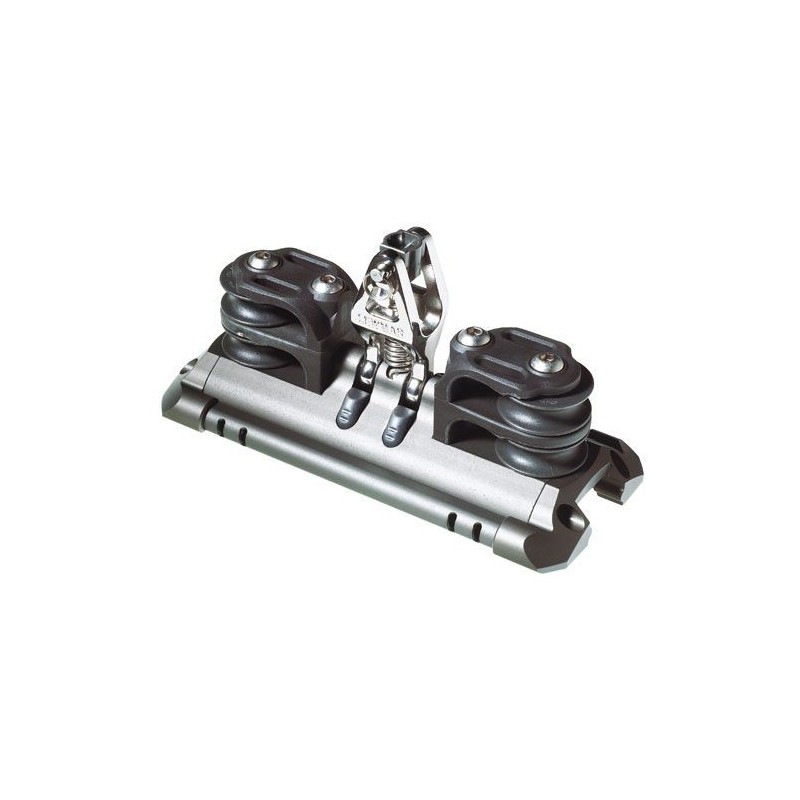

Trolley with cardan and rea double LEWMAR size 2 NTR

Carts NTR
-Is commonly found on cruising and Racing Sailboats
-Modular system that meets any configuration
-Compatible with the track Ocean range
-Wider reas offer better performance

Features:
-Carriage of large sail, for rail flat 30mm and self-supporting 35mm Lewmar size 2
-For 10 to 14.5 metre with hoist mainsail sailboat at the end of boom
-For sailboat of 8.5 to 13 meters with great sailing in middle of boom hoist
-For multihulls to 8.5 to 13 meters
-Carriage with Torlon balls sheave control simple, Becket and gimbal for 72mm Synchro block

Technical features:
-Workload: 1500 kg
-Breaking load: 3000 kg
-Overall length: 210 mm
-Overall width: 92 mm
-Net weight: 997 g
-Ball size: 7.8 mm
-Material ball: Torlon
-Length: 210 mm
-Width: 92 mm

Specifications:
-Material: Aluminium
-Finishing: anodized
-Size of the trolley: T2
-Size of the Rail: Rail size 2 flat 30 mm
-Size of the Rail: Rail size 2 self-supporting 35 mm
-Rea adjustment: 2 double
-GV hoist mounting: gimbal for 72 mm Synchro block
-Brand: Lewmar
