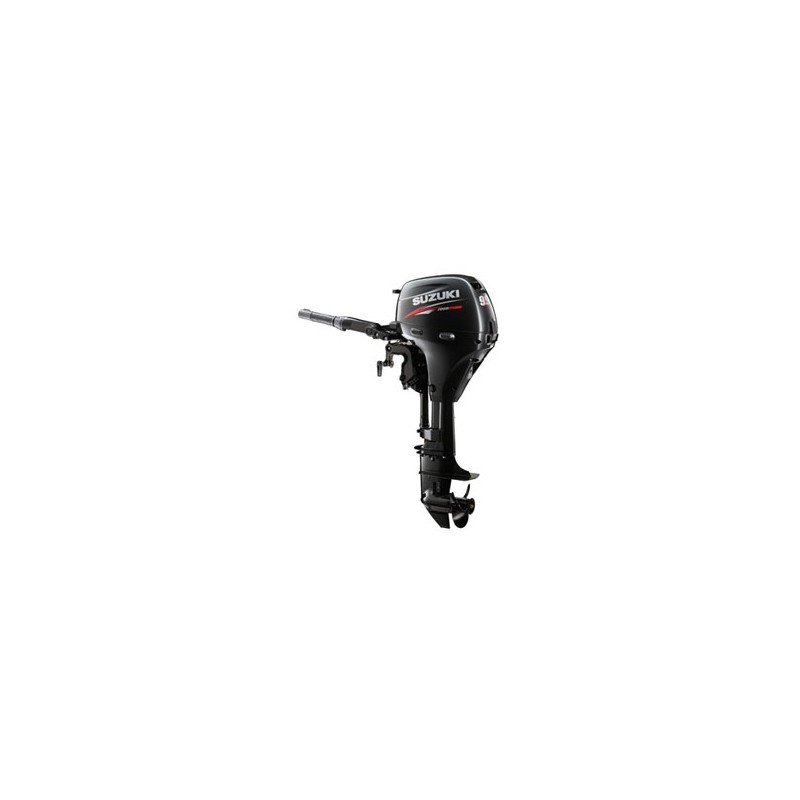

Outboard 9.9 HP SUZUKI DF 9.9 AL

With the new outboard motor DF9.9A Suzuki launched a new generation of portable engines whose characteristics allow ease of use.

Suzuki engineers have developed a new block 208 cm3, twins single camshaft in head, which offers excellent performance. They also worked on weight gain and improving compactness to make transportation easier.

The DF9.9A with "Suzuki multifunction ergonomic" tiller technology, the main functions of orders are combined and integrated on this same tiller for simplified use. The excellent reputation of Suzuki in terms of reliability and durability makes this new engine a perfect choice of propulsion for small boats or serves annex engine on larger shells.

Technical features:

• Type: 4 stroke
• Number of cylinders: 2 online
• Displacement - cm3: 208
• Engine type: camshaft in head, 4 valves
• Fuel supply system: carburettor
• Ignition: Digital CDI
• Bore x race - mm: 51 x 51
• Maximum power - Kw (HP): 7.3 (9.9)
• Range of use at full power - rpm: 5200-6200
• Alternator: 12V / 6a
• Start-up: Manual / Electric (AR)
• Fuel tank - Litre capacity: 12
• Oil capacity - liter: 0.8
• Tree or rear table - length mm: 508
• Weight (in bag with no propeller or oil battery cable) - kg: 42
• Steering: Tiller (A)
• Engine mounting: flexible amortization
• Tilt and lift: manual
• Reduction ratio: 2.08:1
• Shift: forward/neutral/reverse
• Exhaust: Has through the propeller hub
• Guaranteed 3 years (for recreational use) engine

• Rev limiter
• Low oil pressure alarm
• Flushing system
• Suzuki anti-corrosion system

• Oil filled base
• Mounted aluminum propeller
