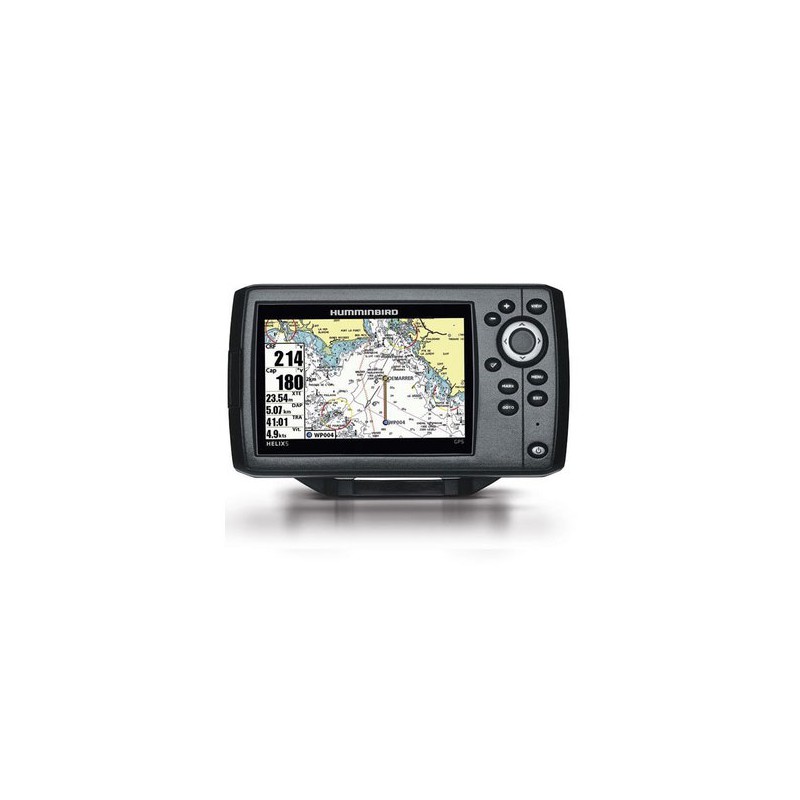

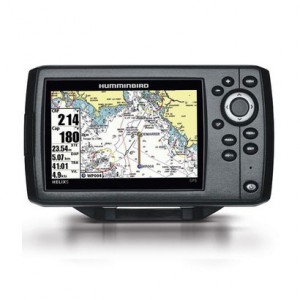

GPS card 5 "HUMMINBIRD Helix 5 G2 CP reader

The HELIX 5 G2 of Humminbird series devices to screen 5 "panoramic HD to operate comfortably and easily the GPSinformation.

Helix 5 CP is a GPS card reader with screen color high resolution. Its backlight to Leds is particularly bright for excellent readability in sunlight.

Compatible with Navionics + and Sylmaps mapping on microSD. Hyper integrated GPS antenna says.

• Screen LCD 5 " TFT 256 color full sun Antirefet / antifog.
• Screen high definition 800 x 480 pixels.
• IPx7 waterproofing.
• Antenna internal GPS WAAS.
• Micro SD card reader.
• Possibility of making screenshots.
• Compatible SYLMAPS and Navionics +.
• Option AIS
• GPS antenna internal precision.
• Display the information necessary for your navigation: XTE, TRA, DAP...
• Memorizing up to 2500 waypoints and 50 routes.
• Screen sharing and display optimized for navigation.

Features:

• Integrated mapping: outline of the coasts
• Water resistance: IPx7
• Card reader: Yes
• Menu in french: Yes
• Card type: Micro SD
• Compatible with: Navionics + | SYLMAPS
• Navigation screen number: 2
• Screen type: TFT color
• Diagonal screen: 5 "panoramic
• Number of tracks: 50
• Number of points per track: 20000
• LxH screen size: 110 x 65 mm
• Number of waypoints: 2500
• Screen resolution: 800 x 400 pixels
• Routee number: 45
• Number of 256 color
• 3D map view: no
• GPS interface: Yes
• Supply type: 10-20 external Vcc
• Support dimensions: 190 x 130 x 100 mm
• Recessed dimensions: 190 x 105 x 25 mm
• Weight: 2.29 kg

GPS function:

• Arrival alarm
• Alarm of drift
• Alarm off road
• Card reader
• Projection line road
• Orientation map North
• Orientation map to destination
• Road tracer
• GPS speed

In the box:

• The handset display
• Holder of ' screen
• Power supply 12 VDC
• Manual in french
