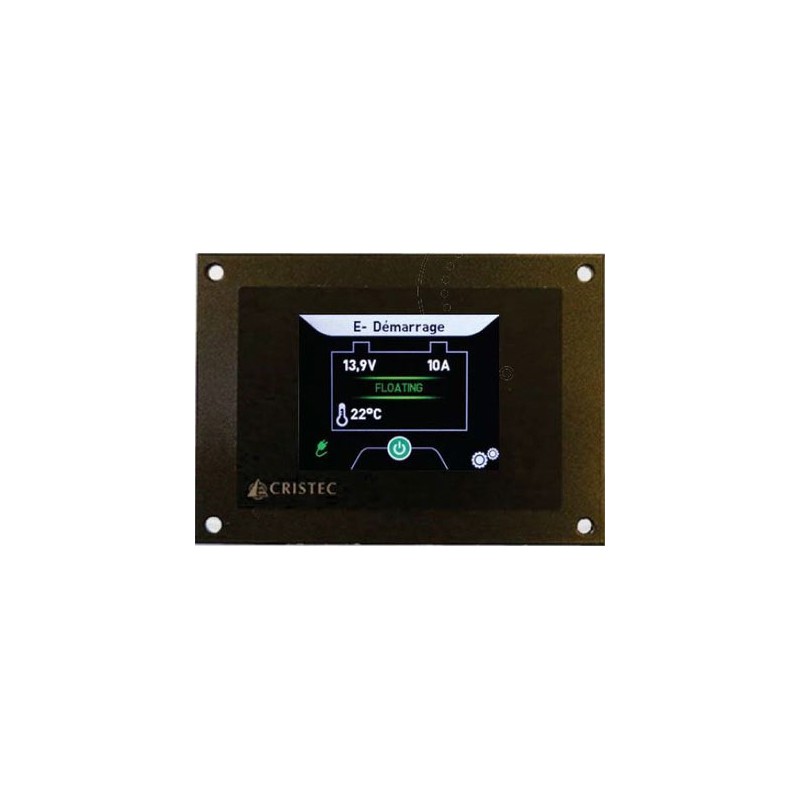

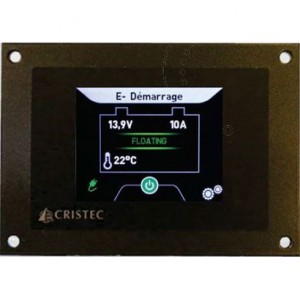

Touchscreen remote display CRISTEC Ypower Display R

This new innovative device is compatible with all Chargers ranges option * and energy units * CRISTEC YPOWER, 12V and 24V.

• It allows to view all parameters of charge when the charger works and ensures supervision of the batteries at the stop.
• The 2.5 color screen "is touch and allows a simple and intuitive navigation.

* Optimal functioning of certain functions is related to production of chargers and units of energy index.

Features display techniques:

• External dimensions: 105 x 75 x 25 mm
• Screen dimensions: 51 x 39 mm
• Cutting: 87 x 65 mm
• Weight: < 500g
• The façade protection class: IP65, not suitable for outdoor use
• DC power range: 8 - 30V via Terminal block + beats E
• Operating temperature:-10 ° C to + 50 ° C
• Storage temperature: from + 20 ° C to 70 ° C
• Convection: natural

Consumption CC via Terminal block + beats E:

• Display and interface with max brightness: 72mA @ 12VDC
• Display and interface in night mode: 5mA @ 12VDC
• Night mode only display: 2.2 my @ 12VDC
• Single interface (display disconnected): 2.8mA @ 12VDC

Setting:

• Number and description of the batteries: up to 3 - service, startup, propeller, etc.
• Charger: Walk / stop
• Alarms: low tensionbatterie, overvoltage battery, etc.
• The courantchargeur fitting: from 100% to 30%
• Backlight: light
• Night mode: allows the stop delay fan charger if presnet.
• Charger setting: type d battery, Boots ON / OFF, etc.
• Language: German, English, Spanish and french (Italian and Turkish - current)
