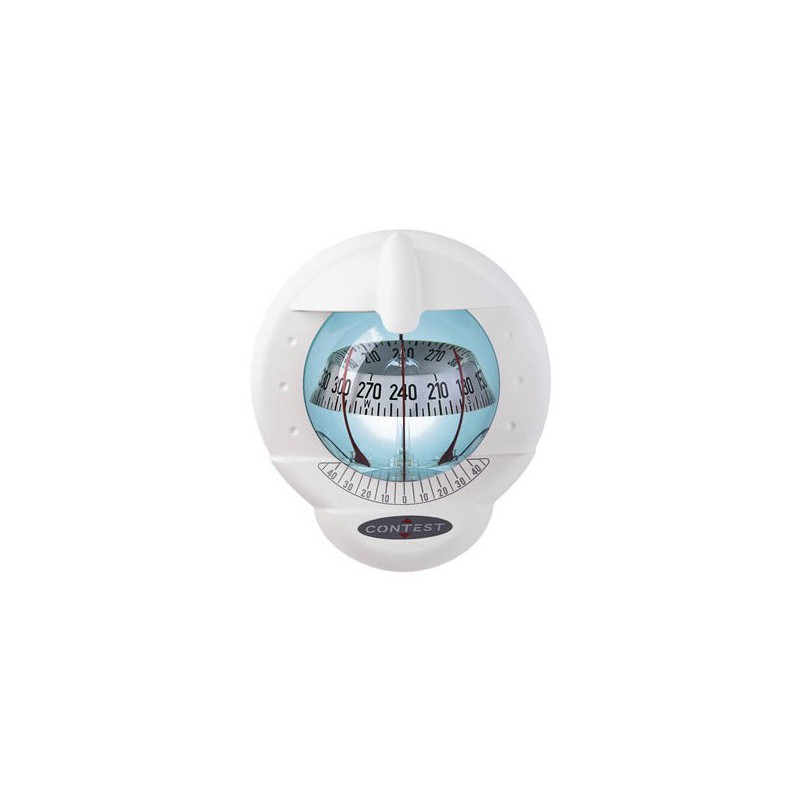

Built-in Compass PLASTIMO Contest 101 white

Compass contest 101 at white rose vertical wall.
The bulkhead compass Plastimo Contest 101: double reading, double scale (vertical and horizontal), lighting and gitometre integrated. Approved MM, class B, apparent O of the 100 mm rose. Ø HT 167/150 mm.
By inventing the double reading, Plastimo had allowed the browser to follow its course from the cockpit and cabin.
Plastimo Contest 101 bulkhead compass goes further: his exclusive editing on any kind of partition, and its lines allow him to adapt technically and to stay always in harmony with the design of the current boats. Fully compatible with the drilling of the Contest 100.
Interchangeable outer flange.
Comes with cover and drilling template.
Features::
•Size of boat: from 9 meters. •Double reading: cockpit and side cab. •Rose: double graduation: horizontal and vertical. All graduated conical •rose 5 °, apparent O of the rose: 100 mm •Rappel of the caps every 30 °. •Type of editing: comes standard in mount partition •Alidades version: 3 alidades, at 45 °. •Gitometre: cottage reminder every 10 °. •Eclairage: 12 Vcc. red light on black and white, white lighting on roses yellow and red roses. •Livre cover, drilling template.
